End Brush Machining Guidelines and Safety Instructions
Features:

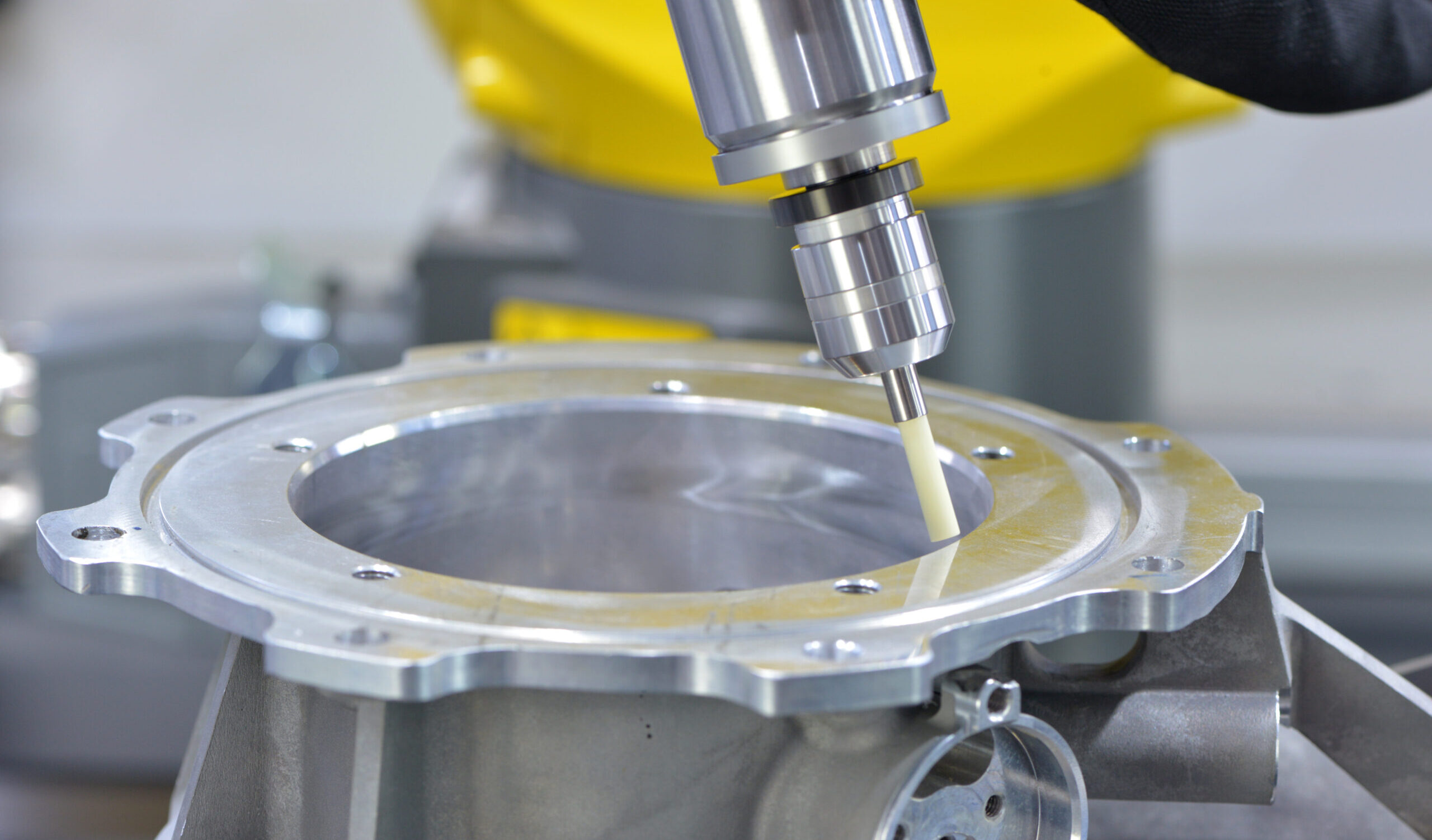

- Ease of Operation: Well-suited for both manual and automated processes, including use with CNC machines and robotic arms, thanks to its straightforward application.
- Durability: The brush has high bending strength and can operate at up to 12,000 RPM without risking filament breakage.
- Versatile Usage: Suitable for smoothing outer edges, planar surfaces, and broader geometries.
- Tip Adjustment: The brush tip can be angled using a diamond disk on a lathe or spindle.
Key Features of Flat Edge:
- Surface-Level Efficiency: Designed for uniform deburring and finishing of flat surfaces and large areas.
- Wide Contact Area: The flat edge ensures consistent and even surface treatment.
- Versatile Usage: Suitable for smoothing outer edges, planar surfaces, and broader geometries.
Key Features of Tipped Edge:
- Angled Design: Allows for easy access to confined spaces and hard-to-reach areas.
- Enhanced Control: The pointed edge provides better control for selective deburring tasks.
- Versatility: Suitable for deburring geometries with complex shapes and sharp angles.
- For examples:
Speed Recommendations:
SKU# | Description | Ød mm | Spindle | |
min. | max. | |||
min-1 | ||||
UF4…50 | UF-EB-…-D5-L20 | 5 /0.197” | – | 12000 |
UF6…50 | UF-EB45-…-D5-L20 | |||
Grit Options for Machining Requirements:
End Brush Installation and Usage:
- Shank Grip: Ensure that the shank is gripped by at least 20 mm to avoid detachment due to vibrations, which could lead to serious injury.
- Chuck Matching: Use a chuck that matches the diameter of the shank.
- Tool Compatibility: The brush is designed for use with hand-held rotary tools and CNC machines. It can handle precise finishing tasks in tight or recessed areas where traditional brushes may not perform as well.
End Brush Safety Precautions:
- The brush is not recommended for use with pneumatic-powered tools due to safety concerns.
- Operators must wear appropriate personal protective equipment (PPE), including goggles, masks, gloves, and hearing protection.
- Speed limits should be strictly followed to avoid overheating, detachment, or bristle breakage.
End Brush Safety Instructions:
- Using the product in ways not specified in the guidelines may result in serious injuries or fatalities.
- Eye and skin protection is essential as particles, debris, or burrs generated during processing can cause severe injuries.
- Stop using the brush if you detect any vibration or unusual occurrences. Continuing under such conditions increases the risk of tool detachment or workpiece damage.
- Overheating risk: Prolonged machining at a constant point can cause overheating, increasing the risk of bristle detachment or breakage. Operators should avoid direct contact with the machined area after use to prevent burns.
Fire and Work Area Safety:
- The tool may generate heat or sparks, so avoid using it near flammable liquids or explosive atmospheres.
- Ensure the work area is clean, and barriers are in place to prevent unauthorized personnel from entering. Everyone in the area should wear protective gear.
Handling of Cutting Particles:
- Use a dust collection system to capture the fragments and debris generated during processing.
